Kodama Trinus 1.3

$299.00

Your Trinus shipment includes everything you need to get started on your first project, right out of the box:

  • Trinus 1.3
  • Power Supply Unit 12v 10A
  • Spare Hot End Silicon Sock
  • USB Cables (Long & Short)
  • Tweezers
  • Black Tape Sheets for Print Bed
  • Grease Pack
  • SD Card
  • SD Card Adapter
  • Cutting Pliers
  • Nozzle Cleaning Needle
  • Metal Spool Holder
  • Kodama Story
  • Assembly Manual
  • Quick Start Guide
  • Filament Sample Packs

The lead time for US / EU orders is 1-2 weeks. Scroll down for more information.

Options

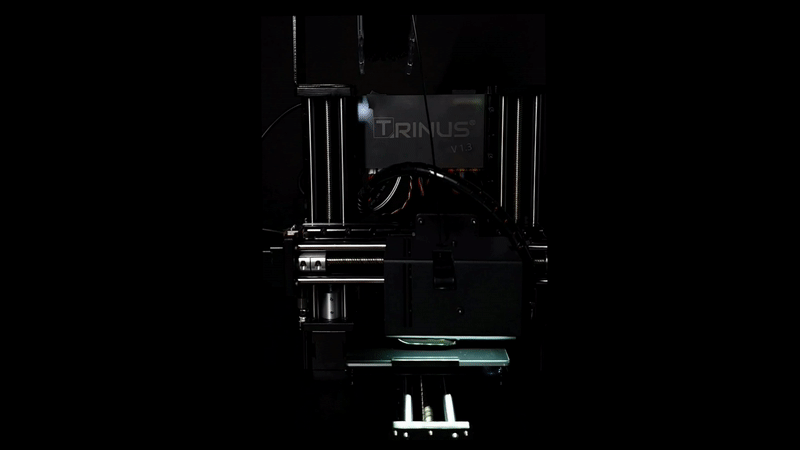

Trinus is a new category of 3D printer.


Designed entirely of steel and aluminum components, Trinus delivers the stability, accuracy, and durability of an industrial-grade printer at a fraction of the size and cost. Its robust all-metal construction maintains performance and eliminates the need for constant recalibration. The single-axis slide, a feature commonly used in industrial machines but rarely found in desktop 3D printers, allows Trinus to produce high-quality prints at speeds up to 70 mm/sec, with a top speed of 150 mm/sec. Powered by silent Trinamic (TMC) and LV8729 stepper drivers, the printer is 10 times quieter than its predecessor. Trinus operates at a minimum layer height of 50 microns, generating clean and smooth prints every time.



What Can Trinus Do?



Trinus can print with PLA, Flex, PC, ABS, Nylon, and more. While some of its competitors use 3D printed components and zip ties to hold parts together, Trinus is made with all premium aluminum and steel parts -- inside and out. Thanks to these industrial-grade components, Trinus offers superior dimensional accuracy and precision. And with no loose belts or plastic gears to flex or fail, it performs at a level far above its price point.

Features


Technology FDM
Body Aluminum & Steel
Print Bed 120x125x125mm
Print Speed Up to 75mm/s
Nozzle Diameter 0.2 to 0.6mm
Supported Filament 1.75mm - PLA, ABS* & PETG
Printing Resolution 50-500 microns
Extruder Temperature Up to 250°C**

* Enclosure is needed, sold separately.
**All metal hotend can achieve 295C, sold separately.

Meet Bardo.


Bardo is a 3D printer board based on the Atmega2560 and adapted for the Trinus 3D printer series. It’s optimized with Marlin 2.x and ready to use with our Kodama Trinity software. Designed for user-friendly peak performance, the color-coded connectors allow for easy, hassle-free assembly.

Features.


Trinus 1.3 includes an Auto Bed Leveling (ABL) system to ensure that your print adheres properly to the bed surface every time. LEDs included at the extruder light up the print-in-action for you and any pictures you’d like to share.

Kodama Trinity.


Trinity is a free application that is a perfect companion to your Trinus. Based on the LCD screen available for Trinus, it offers the same user experience from your computer (Windows and Mac supported). Besides being able to control your printer it also offers an easy means to keep up to date with the latest firmware for your printer's Bardo controller and LCD (sold separately).

Trinus is easy!


Our lean design approach keeps Trinus simple. With an easy-to-follow manual and only 11 components, Trinus can be assembled in no time. Go from unboxing to starting your first project in just 30 minutes!


3D Maker Noob Review for Trinus 1.0:

3D Maker Noob gave us a great review of the Trinus 1.0, and the 1.3 improves even further on the operation of the machine. While most of the comments in the video are still relevant, we can’t wait to see the reviews of our latest and greatest!

"Makers around the world are praising this printer for what it can do and also for the bigger picture of how it can be used due to its modular design."
